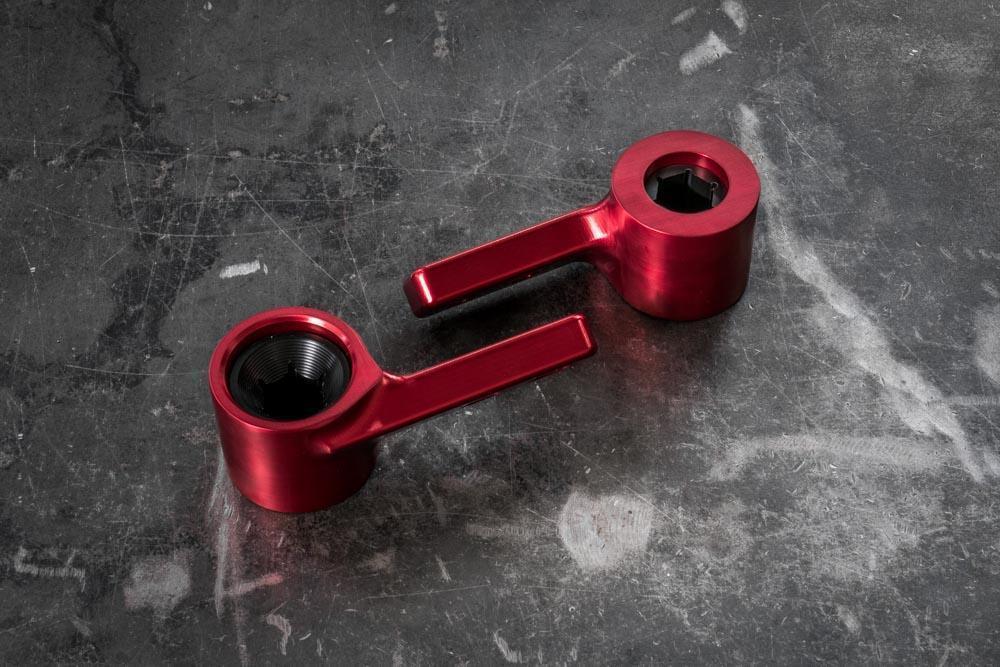

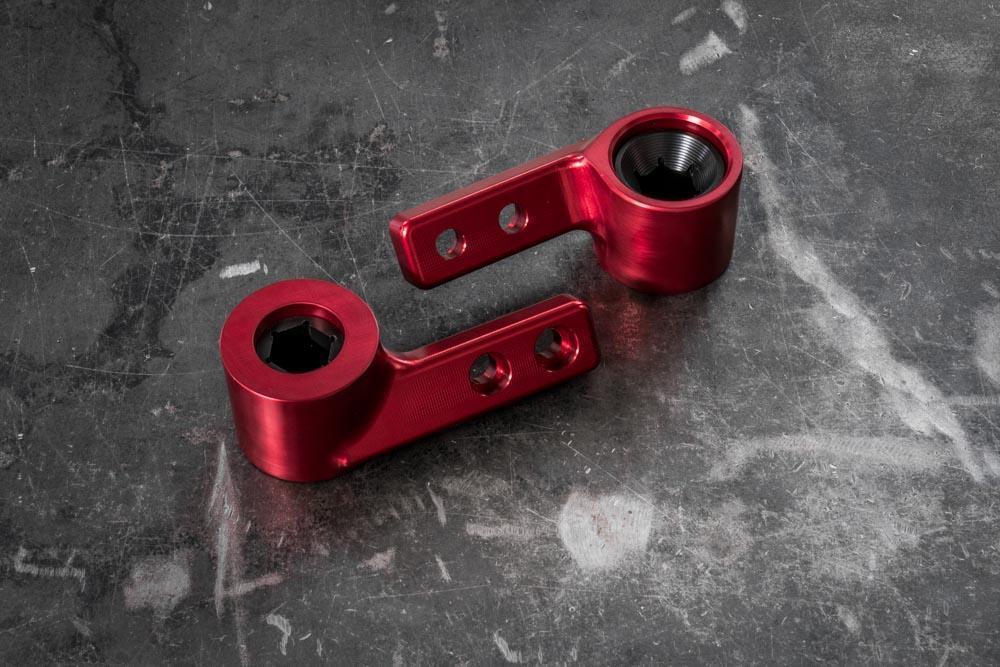

E30 & E36 CENTERED CONTROL ARM EYEBALL FOR E46 HEX CONTROL ARMS

Introducing Garagistic's E46 Hex Treehouse Control Arm Mounts for the E30 and E36 chassis. Here is a quick and easy way to add angle, track width, caster, and camber to your E30 or E36! E46 front control arms have been used by E30 and E36 drifters for years, it's no secret that they really work. With our E46 Hex Treehouse Control Arm Mounts, you don't need to grind down the ends of your E46 control arms to make them fit on the E30 and E36. Our mounts come with an all-new billet aluminum housing that's anodized a deep Garagistic red and will have a Delrin insert that is covered by our lifetime warranty.

Our Delrin inserts are available in both the smaller and the larger hex sizes so just let us know what size hex your E46 control arms are at checkout! We offer these control arm mounts in two versions (explanations of each is below):

1. Offset: traditional setup
2. Centered: less caster

RETURN DISCLAIMER: DISCLAIMER: E46 Control Arm Style TREEHOUSE MOUNTS ARE ONLY ELIGIBLE FOR RETURN IF UNOPENED AND NEVER INSTALLED. E46 FRONT CONTROL ARM TREEHOUSE MOUNTS ARE NOT ELIGIBLE FOR RETURN IF THE DELRIN INSERTS HAVE BEEN PRESSED INTO BUSHING OR TEST FITTED ON THE VEHICLE.

OFFSET VERSION E46 HEX TREEHOUSE CONTROL ARM MOUNTS FOR THE E30/E36

The offset version E46 Hex Treehouse Control Arm Mounts for the E30/E36 allow you to take full advantage of the added track width and caster of the E46 control arms. This is the standard setup for those looking to add E46 front control arms to their E30 or E36 chassis. When doing this modification, you will also need to replace your tie rods to account for the new suspension geometry. To run this setup you will need E90 inner tie rods (32106765235 / 32106765236) and E36 outer tie rods (32111139315 / 32111139316).

CENTERED VERSION E46 HEX TREEHOUSE CONTROL ARM MOUNTS FOR THE E30/E36

The centered Version E46 Hex Treehouse Control Arm Mounts for the E30/E36 is for those looking to remove caster. After installing these control arm mounts, you will feel a drastic difference in handling and steering feel. While rubber OEM bushings are built to be complacent on the street and comfortable for the passengers, they allow more movement than is ideal for a performance-oriented vehicle. By stiffening up the mounting point of the front control arm mounts, steering will be sharper and the car will corner more effectively. Excellent for both regular Drift, Street, and Track use. Unfortunately, not Spec-E30/E36 legal.

These are very similar to the discontinued "Treehouse racing" eyeball control arm bushing mounts. As with all of Garagistic products; we offer a lifetime guarantee. Price is for a pair (2 units). Enough to do 1 car. The front control arm bushings for these cars is also an important maintenance item that should be addressed right away to prevent a possible accident and costly repairs.

With the age and the average mileage of E30s and E36s, it is more than likely that the majority of the bushings will need to be replaced. Replace it with our control arm bushings and mounts and never have to do it again! Do it once, do it right.
