E30 BRAKE BOOSTER DELETE BRACKET (FOR WILWOOD AND TILTON PEDAL BOX)

Product Overview

THIS IS VERSION 3!

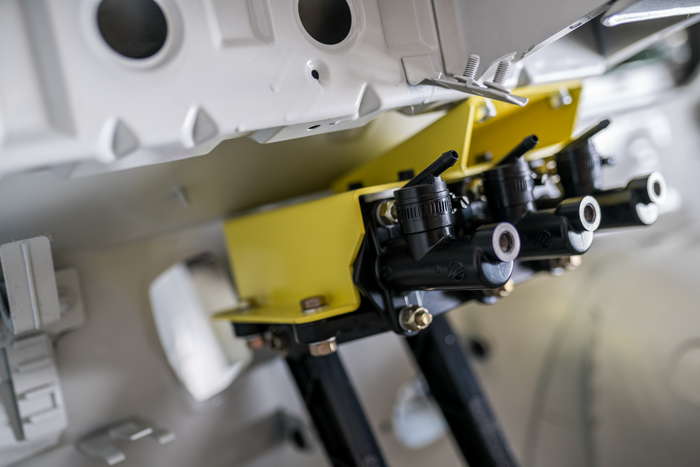

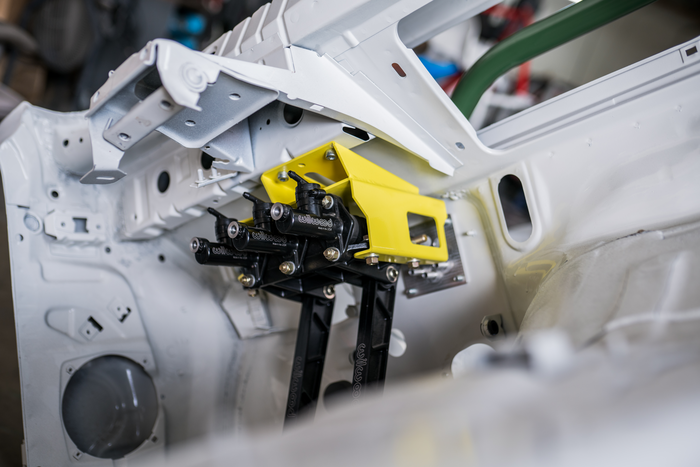

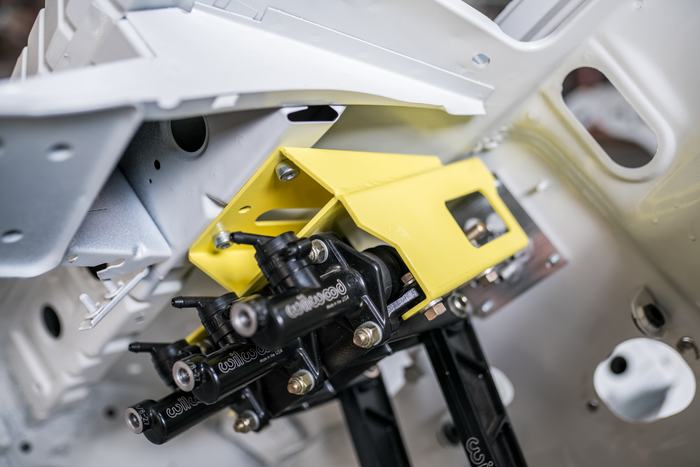

It's no secret. The brake booster relocation is the hardest part of the V8 into E30 swap! The factory booster is in the way. Some choose to use E32/E34 booster setup and relocate behind the headlight. This is costly, requires lots of custom work, clutters engine bay, and requires the removal or relocation of the complete abs setup including brake lines. With this boosterless brake setup bracket, swap time is shorter, and swap is cleaner. Our boosterless brake bracket allows you to use wilwood or tilton pedals/master cylinders. Everything is relocated tightly and neatly under the dash in the factory pedal area. When the conversion is done, its all hidden! Simply mount the reservoirs in your engine bay and that's the only give away. Easy way to get a wilwood pedal box for your E30.

Dont forget to order a plastic version of the e30 underdash panel if you are missing yours or dont want to cut your oem unit with this panel: E30 under dash panel. Also our plumbing kit makes this job even easier!

HOW IS THE E30 BRAKE BOOSTER DELETE BRACKET MOUNTED?

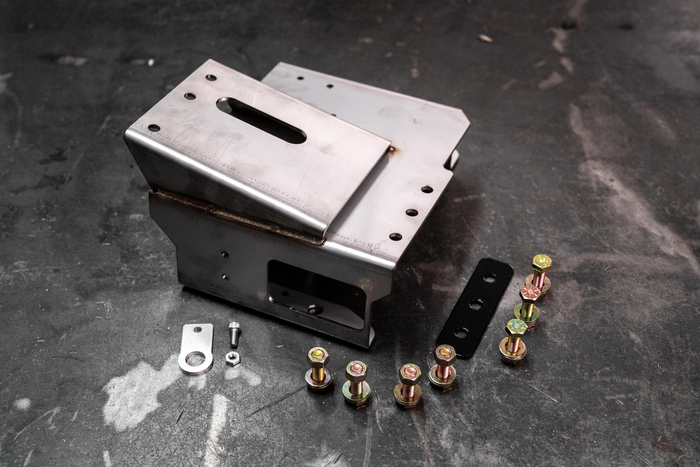

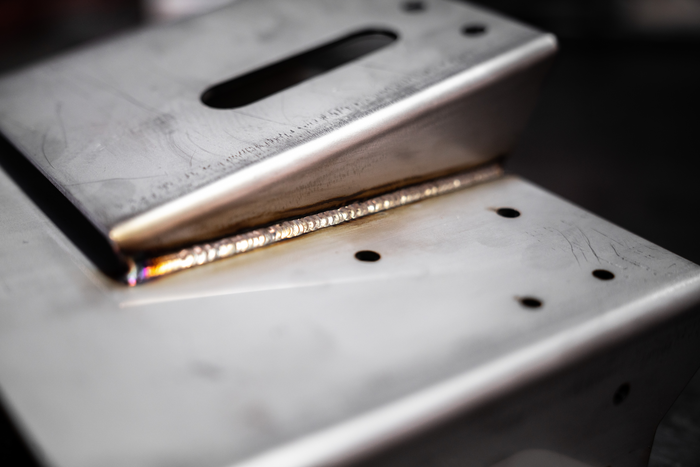

Mounting (body side) consists of three of the factory holes under the dash + three holes near the firewall that need to be drilled. Bracket is completely assembled and tig welded (certified welder) on arrival. All hardware is supplied. Pedal assembly is not included. We recommend using Wilwood 340-11299 Brake and Clutch Pedal Assembly

WHAT SIZE MASTER CYLINDERS SHOULD I USE WITH MY BOOSTERLESS DELETE SETUP?

We recommend using masters with 5/8" bore front and rear for factory sized or similar brakes. These are the most compact masters and the smaller bore means that effort will be bearable (especially if you plan to run these on the street). You will also need 3 master cylinders. 2 for the brakes and 1 for the clutch. For most customers, a 5/8 bore for the brakes keeps the pedal effort to a minimum and safe. The clutch will be a 3/4 bore. The correct 5/8 master cylinders needed can be found here: Wilwood 260-10371 Short 5/8" Bore Master Cylinder Kit For the 3/4 bore (clutch) we recommend this version:3/4" BORE, WILWOOD, PART # 260-10372 IF YOU ARE USING LARGER PISTON BRAKES SUCH AS E36 COMPONENTS YOU WILL WANT TO USE LARGE 3/4" BORE MASTER CYLINDERS FOR THE BRAKES. PLEASE CONTACT US IF YOU REQUIRE THIS SETUP!

We now carry Wilwood pedals and master cylinders in a package deal. Simply select the option above to "add pedals and master cylinders" and you will get everything needed to bolt the boosterless Wilwood into your E30. You will get the adjustable pedal assembly (340-11299), 2 5/8 Wilwood master cylinders, and one 3/4 master cylinders.

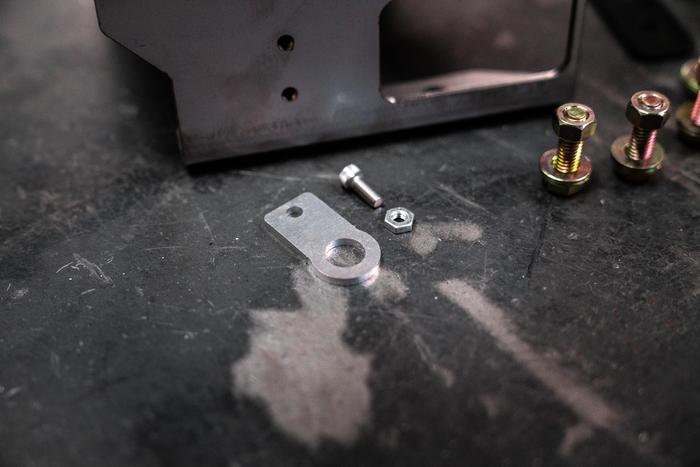

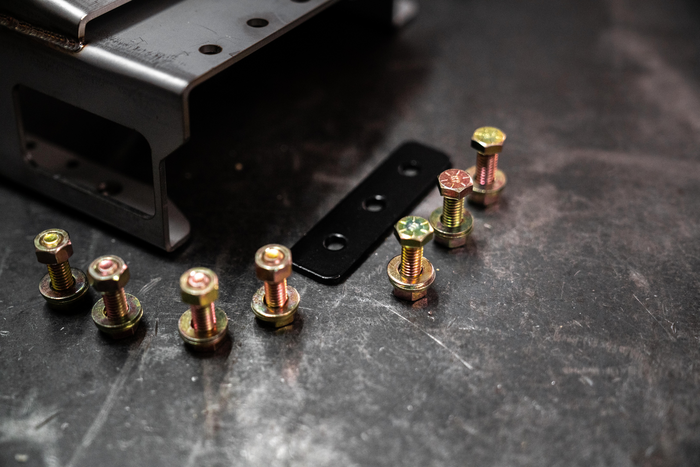

If you would like different bore sizes to let us know and we can change them. Otherwise, these recommended default bores will be selected. The general rule of thumb: Bigger bores: Minimal pedal travel/stiffer pedal/higher pedal effort. Smaller bores: Long pedal travel/softer pedal/less pedal effort. All grade 8 hardware included. Pedals/master cylinders/brake switch are not included and must be bought. This is for the conversion bracket and hardware only. This pedal mount does not work with airbag steering columns. To use this mount in an airbag car, a non-airbag steering column must be installed first. Uses three of the factory holes under the dash + three holes near the firewall that need to be drilled. Works on left-hand drive cars only.

Please note: We no longer include the 3 brass fittings picture as we upgraded to better fittings that are included in the plumbing kit. Instructions can be found here
