BMW REAR SUBFRAME CAMBER AND TOE CORRECTION BRACKETS

The stock E30, E21, E28, E32, and E34 rear subframes do not allow you to align the rear wheels. Alignment is a critical point in spec E30 as well as any track, autocross, or spiritedly driven car. Adjusting your camber and toe is also a must when lowering your car. It's a night and day difference. When an E30, for example, is lowered, the car has a lot of negative camber (up to 6 degrees!). Although this is wanted by some, it can be excessive. These brackets are welded to the rear subframe on the rear control arm mounting points. You slot the original hole and have these professionally welded in place. Then using either the Garagistic eccentrics or the OEM eccentric BMW hardware the rear of your BMW can be properly aligned! We also offer subframes with this welding service completed and freshly powder coated for most BMW chassis, please see our other listings.

Compatibility

Can be used for BMW E21, E28, E30, E32, E34, E36 318ti, and Z3. These are spec E30 legal!

Professional installation recommended.

WELDING REQUIRED!

WHAT'S INCLUDED AND WHICH KIT DO I NEED?

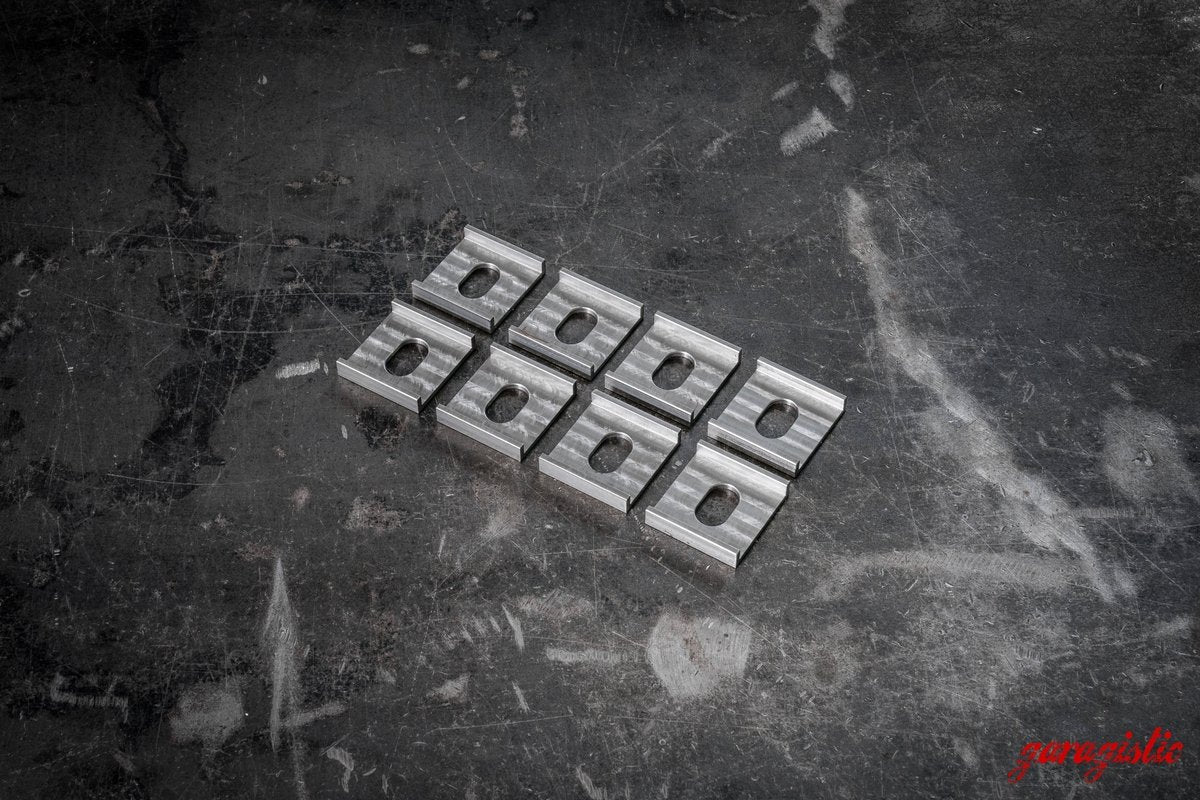

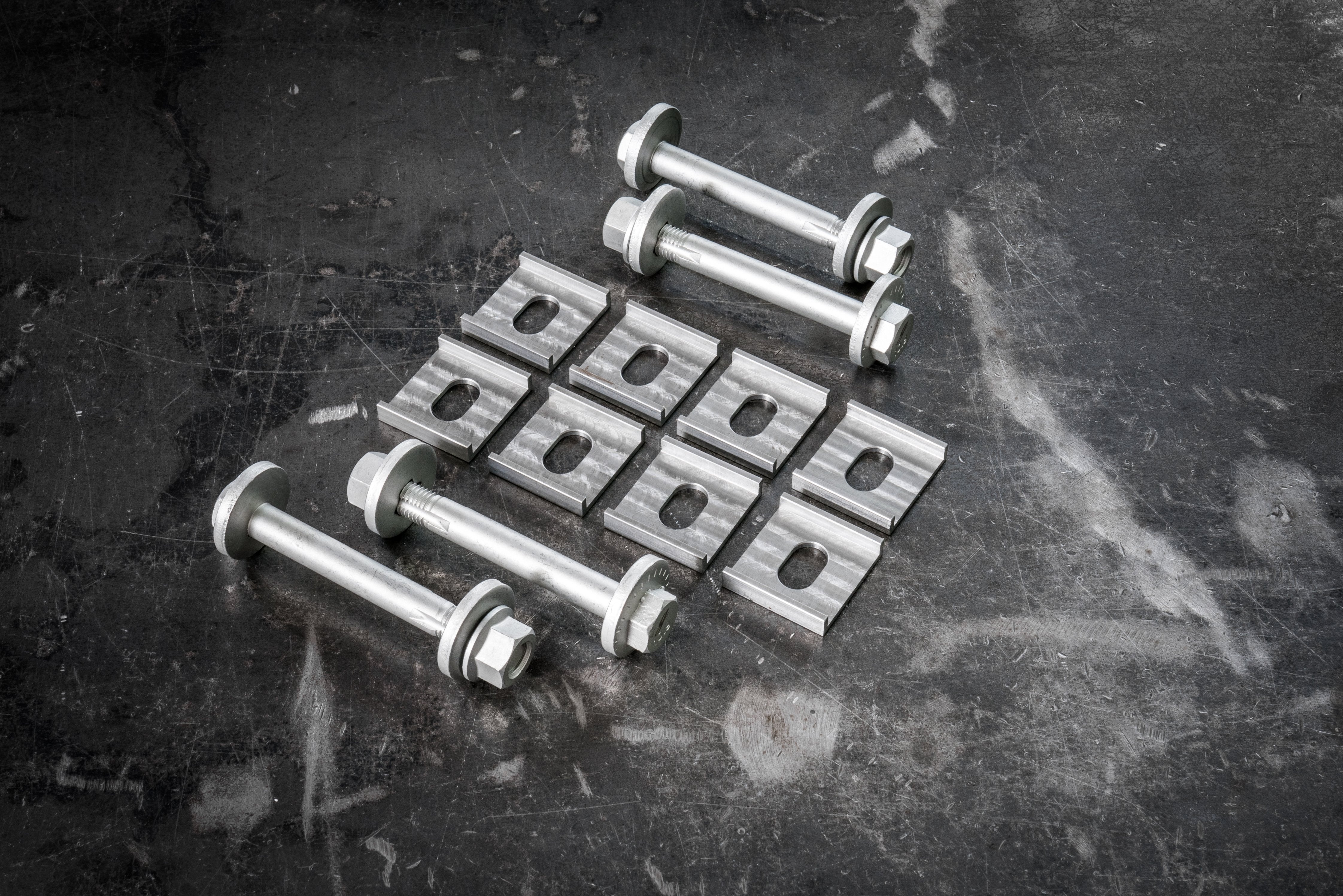

FULL KIT

Each Full Kit includes 8 brackets. This is enough to do BOTH camber AND toe adjustment (This includes 8 weld on brackets, you will require eccentric hardware for proper adjustment). The subframe has 4 mounting points for the rear trailing arm, 2 per side. The camber is adjusted using the inner mounts (closest to diff), and toe is adjusted with the outer mounts (closest to the wheels). The camber brackets (inner tabs) should be welded with the slots going up and down. The toe bracket (outer tabs) slots should be horizontal (front to back).

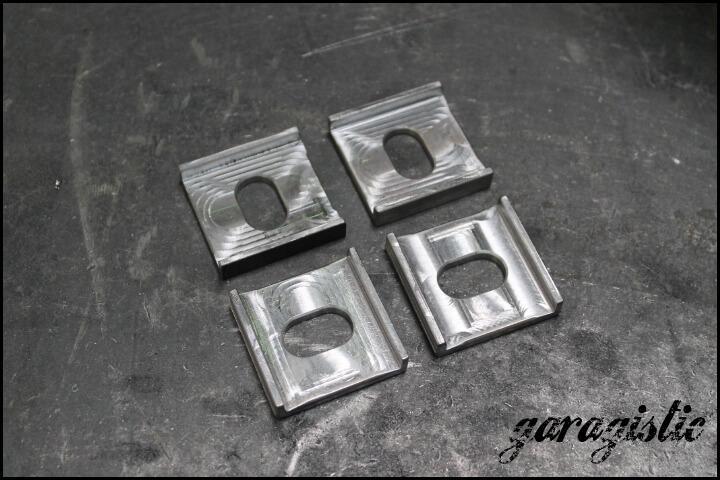

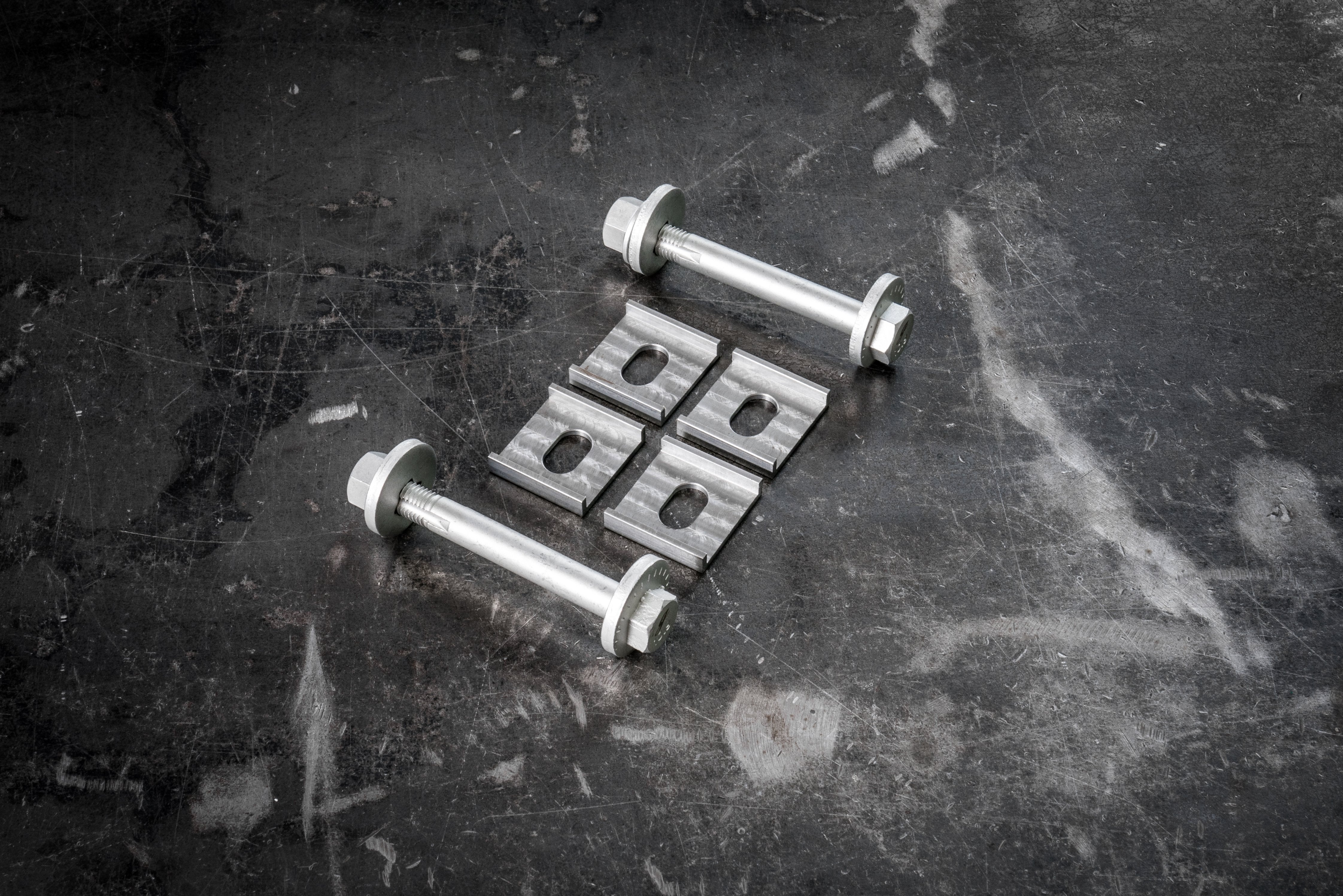

HALF KIT

Each Half Kit includes 4 brackets. This is enough to do either camber OR toe. You need to order 2 kits or our complete kit to make the rear subframe fully adjustable for both camber AND toe. This kit does NOT include the eccentric hardware unless selected in the options. The subframe has 4 mounting points for the rear trailing arm, 2 per side. The camber is adjusted using the inner mounts (closest to diff), and toe is adjusted with the outer mounts (closest to the wheels). The camber brackets (inner tabs) should be welded with the slots going up and down. The toe bracket (outer tabs) slots should be horizontal (front to back). To make sure you get the right order: One kit will do either toe OR camber. Two kits will do both toe AND camber.

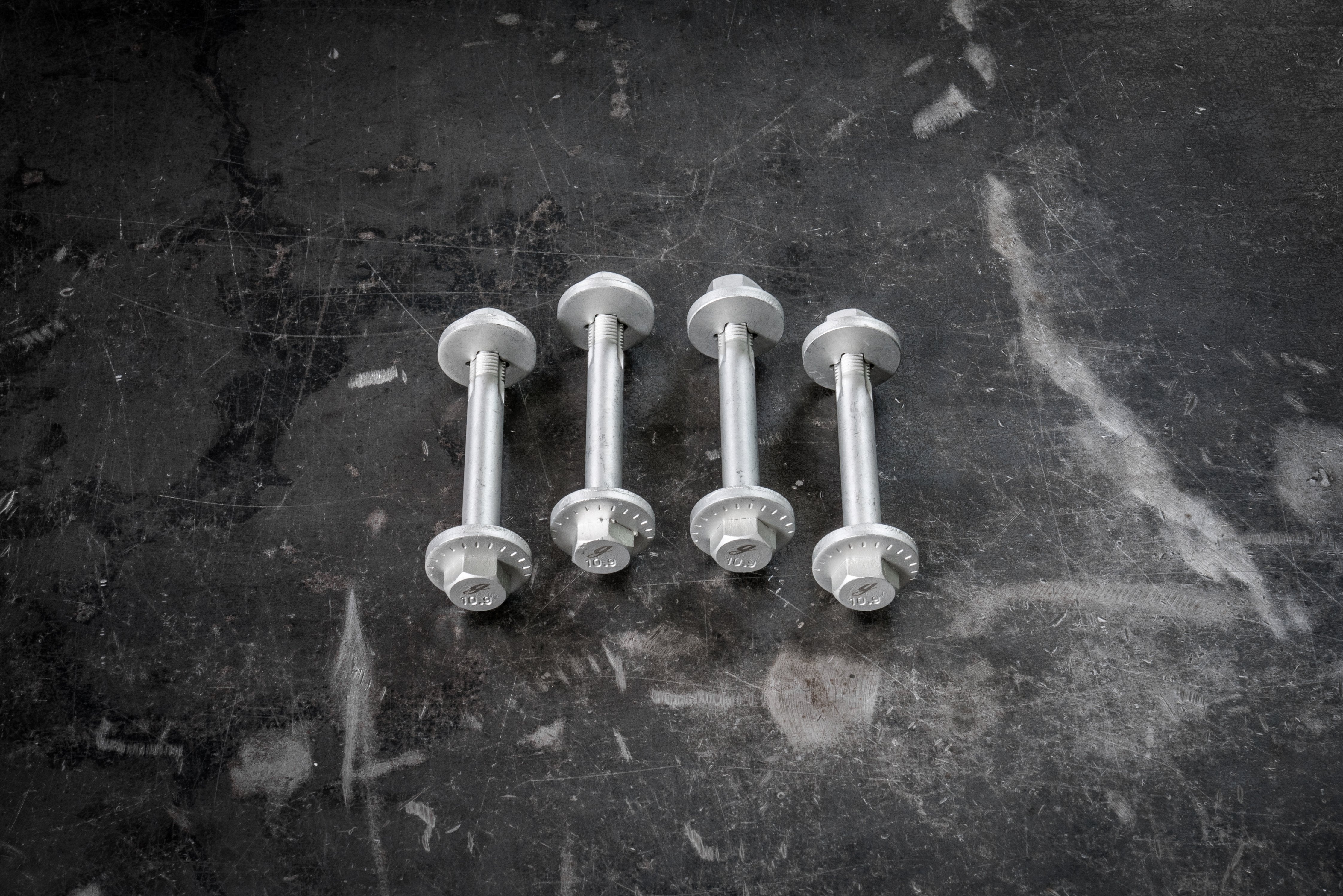

HARDWARE INFO

Please be sure to check if you want the genuine BMW OEM Hardware( Includes Eccentric Bolts, Eccentric Washers and Bolts) or if you would like the Garagistic eccentrics shown below. If you get your own OEM Hardware the BMW part numbers:

33321095102 - Eccentric Bolt

33306786186 - Eccentric Flat Washer

33326760668 - Self-Locking Collar Nut
